Jiangxi Ootee Optics Co., Ltd. is a professional factory that processes infrared materials and lenses. It can independently complete the rough forming of sulfur based glass, grinding of infrared related materials, single point rolling, super washing, coating, etc. The factory has the ability to produce small batches of samples and large quantities. Having the ability to design optical applications and coatings, we provide customers with comprehensive and reasonable solutions for optical component products.
Ootee is located in Jiangxi Province, with over 100 employees. We are making every effort to meet customers’ research and supply of various optical components. Ootee Optics adheres to the spirit of quality first, customer first, and development innovation. We have a complete set of production and processing lines and complete optical testing equipment, providing customers with suitable prices, fast delivery, stable quality, and thoughtful service. We wholeheartedly provide customers with high-quality precision optical devices
Chalcogenide Glasses Processing capacity
Ootee Optics can independently complete processes such as cutting, rough molding, and high-precision milling of infrared chalcogenide glass materials.
Processing items
Processing capacity
Inspection equipment
Size Range
φ4-200
Radius（mm）
±0.002
Interferometer
Center Tickness tolerances（mm）
±0.005
Micrometer
Outside Diameter（mm）
±0.002
Laser caliper
Surface Quality
80-50
Eye
PV（μm）
0.8-1.5

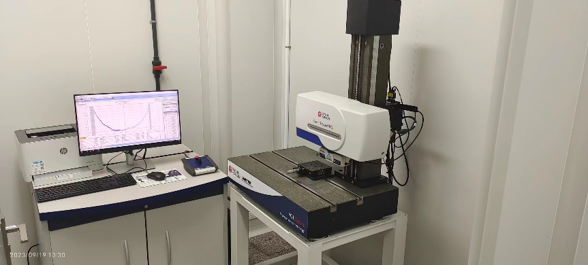

PGI Surface Profiler
Processing Equipment of chalcogenide glass
Equipment
Model
Manufacturer
capacity
Quantity
Corer Machnie
SPCM-M1
Korea
600-800PCS/day
5
CNC lathe
China
400PCS/day
2
Coarse embryo molding furnace
400PCS/day
5
Grinding capacity
Technical Requirement
Machining accuracy
Inspection
Material
Chalcogenide
GE
SI
ZnSe/ZnS
Caliber Range
φ4-140
φ4-200
φ4-200
φ4-200
Radius（mm）
±0.002
±0.002
±0.002
±0.002
Interferometer
Center Tickness tolerances（mm）
±0.005
±0.005
±0.005
±0.005
Micrometer
Dimensional tolerances（mm）
±0.002
±0.002
±0.005
±0.002
Laser caliper
Surface Quality
40/20-80/50
40/20-80/50
40/20-80/50
40/20-80/50
Eye
PV（μm）
0.1-0.6
0.1-0.6
0.1-0.6
0.1-0.6
PGI Surface Profiler

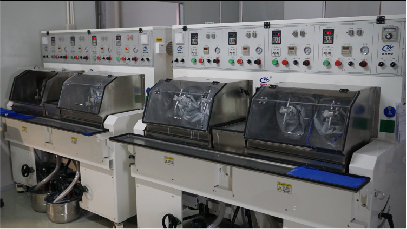

List of Grinding equipment
Equipment
Model
Manufacturer
Capacity
Quantity
Oblique axis machine
HT120.4DF
China Made
500-800pcs/day
2
Push-pull machine
LP-4NP
China Made
500-800pcs/day
5
Upward swing machine
ZHB-8
China Made
500-800pcs/day
10
Underswing machine
Korea Made
500-800pcs/day
10
Oblique axis machine( 6-axis)
HT120.6DF
China Made
500-800pcs/day
2
Single axis machine/chamfering machine
ZKM05A
China Made
1500-2000pcs/day
5
Low throw machine
QJP25.4B
China Made
100-200pcs/day
4
Single point turning processing capability
Ootee optics has advanced imported processing and testing equipment, as well as rich experience in infrared material processing. we can process Aspherical surfaces and diffraction surfaces of materials such as GE/ chalcogenide glass/ZnSe/CaF/ Silicon.

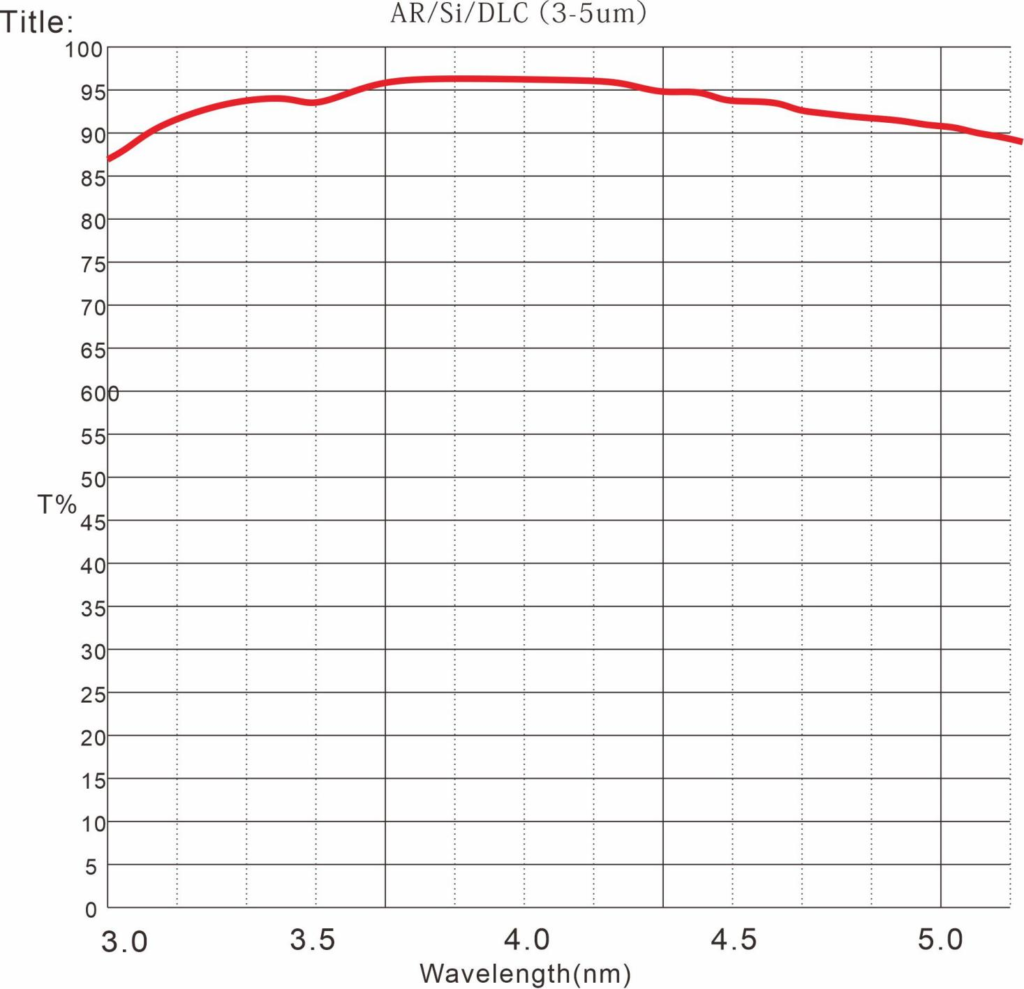

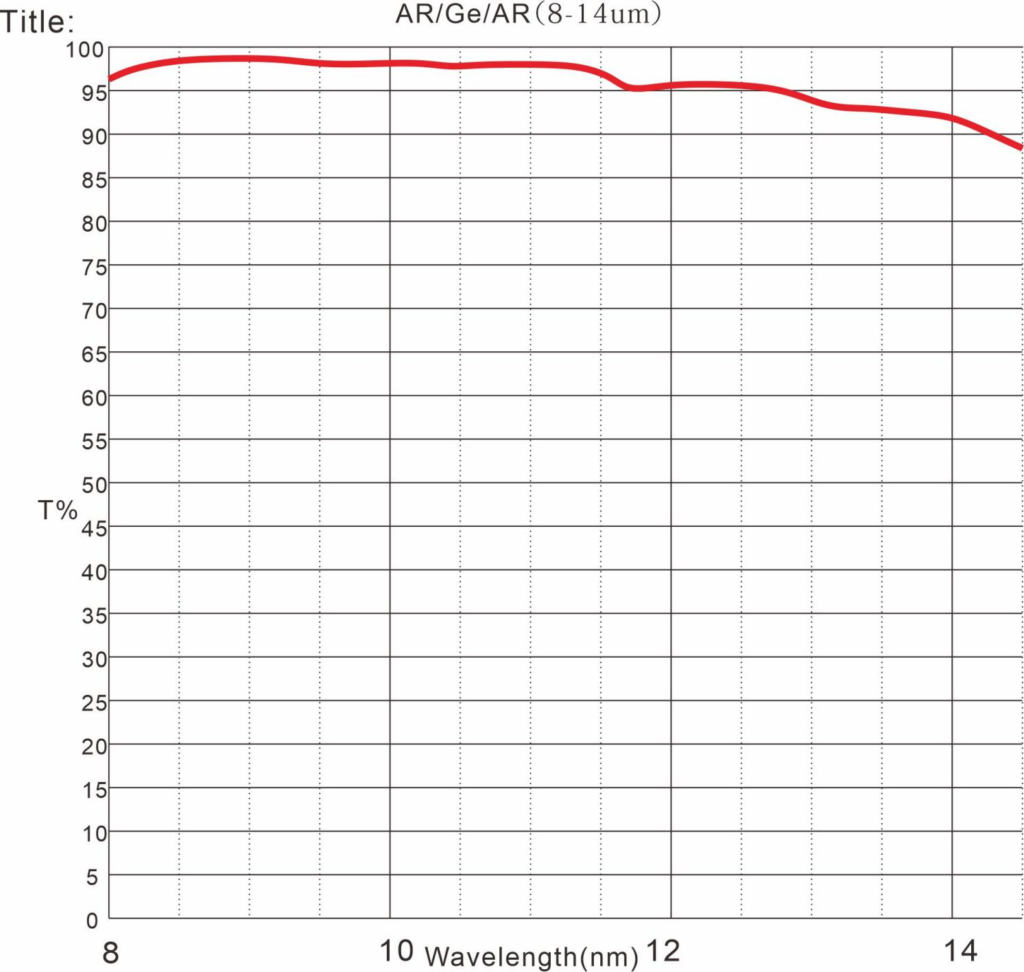

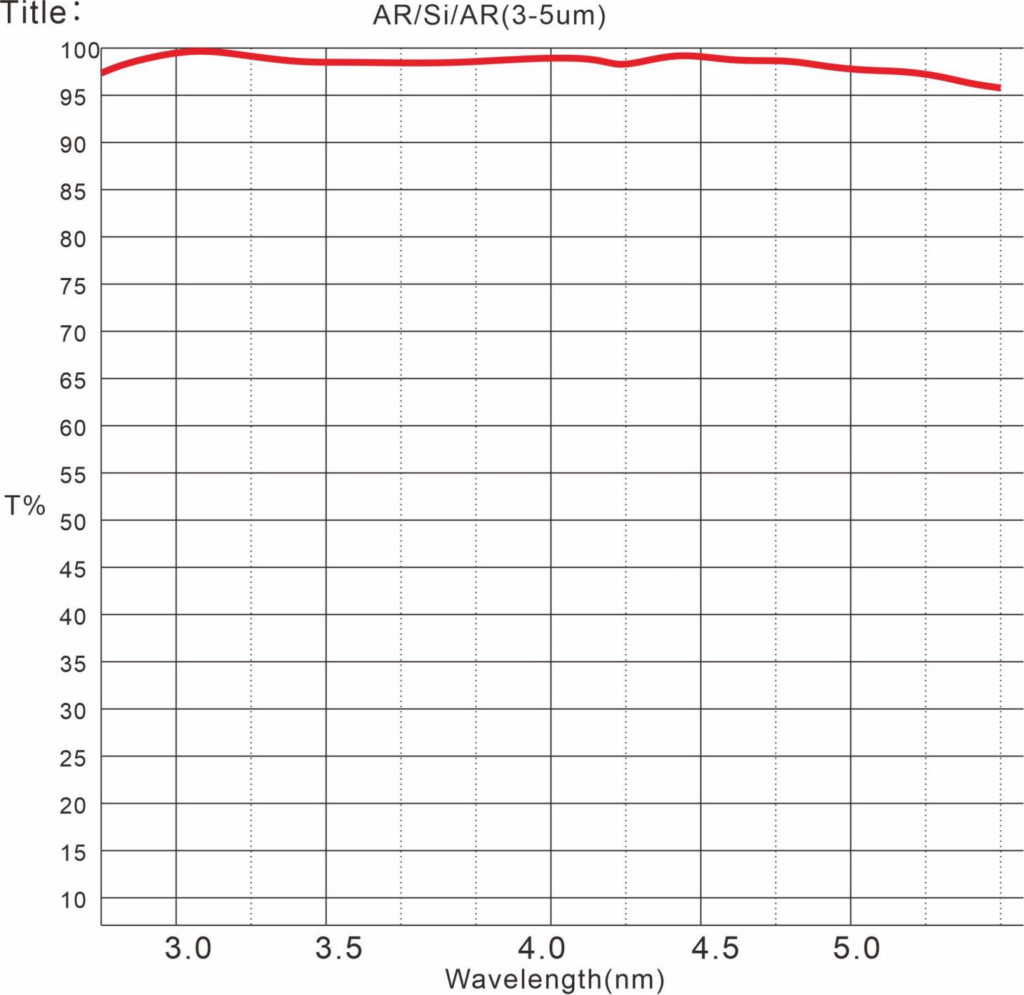

Ootee has advanced equipment and strong technical strength in coating; And has advanced experimental instruments and testing equipment, stable production process, and can timely detect product quality. The wavelength ranges of the coating is from 200nm to 14000nm, including antireflective film, reflective film, metal film, bandpass film, and other customized films for customers.
